9Kg Pull Surface Mount Magnet RTD Sensor (Pt100) - 1m Length
Change Currency
SKU
XE-7802-001
£96.30
£80.25
- Buy 2 - 14 for £86.68 £72.23 each
- Buy 15+ for £81.85 £68.21 each

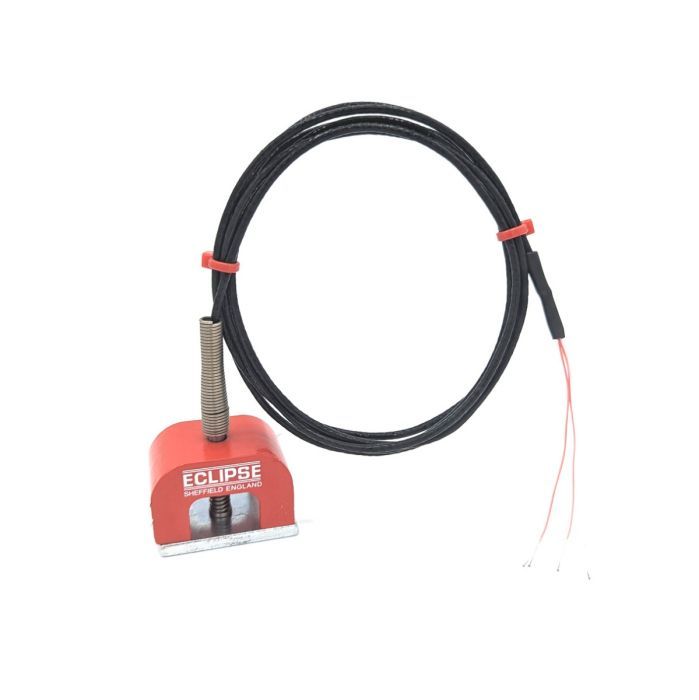

A surface mount magnet temperature sensor with a measuring range of -50 to +250°C with a Pt100 class A 4 wire resistance thermometer detector (RTD). With 1 and 3 metres as standard PFA insulated flexible lead wire and stripped tails
- 9Kg pull strength Horseshoe magnet with 40mm x 25.5mm diameter
- Magnet will hold 90% of its pull strength at 250°C
- Spring loaded tip for good contact
- Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
- Surface temperature measurement of Ferrous metals
- Sensor temperature rating -50 to +250°C
| General Description | Surface temperature measurement of Ferrous metals |
|---|---|
| Sensor Type | RTD |
| Magnet | 9Kg pull strength Horseshoe magnet with 40mm x 25.5mm diameter. Magnet will hold 90% of its pull strength at 250°C |
| Cable Length | 1m |
| Cable Type | PFA insulated flexible lead wire and stripped tails |
| Cable Termination | Bare Tails |
| Max. Temperature | 250°C |
| Min. Temperature | -50°C |
| Standards Met | Pt100 RTD class A 4 wire resistance thermometer as per IEC 751 |
| Tip | Spring loaded tip for good contact |
