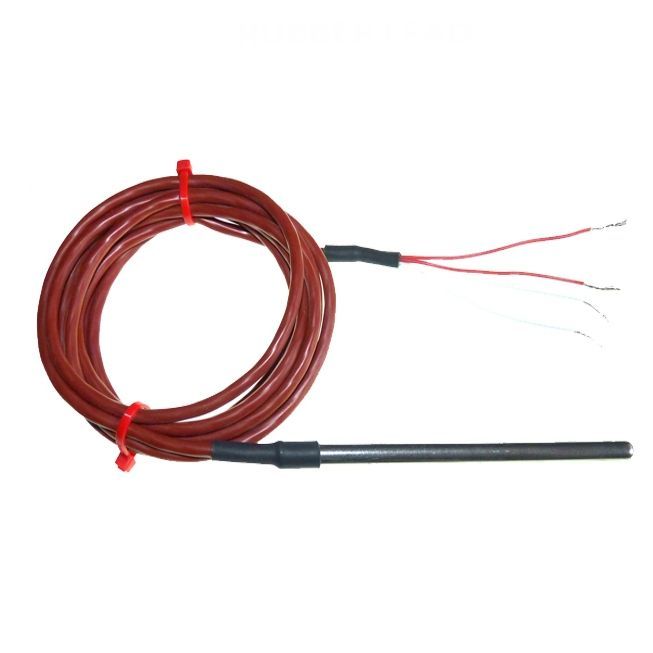

General Purpose Pt100 Silicone Rubber Lead - Type PRT - 6.0mm Diameter - 100mm Length
Change Currency
SKU
XE-3631-001
£71.93
£59.94
- Buy 2 - 14 for £55.81 £46.51 each
- Buy 15+ for £51.36 £42.80 each
Specifications
| General Description | Suitable for general purpose industrial & commercial use |
|---|---|
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire |
| Probe Diameter | 6.0mm |
| Probe Length | 100mm |
| Sheath Material | 316 stainless steel sheath |
| Cable Length | 2M |
| Cable Type | Flexible silicone rubber insulated |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare tails |
| Termination Type | 4-wire tails allows connection to any PT100 instrument 2, 3 or 4 wire |
| Max. Temperature | 200°C |
| Min. Temperature | -50°C |
| Accuracy | Class B |
| Number of Wires | 4 |
