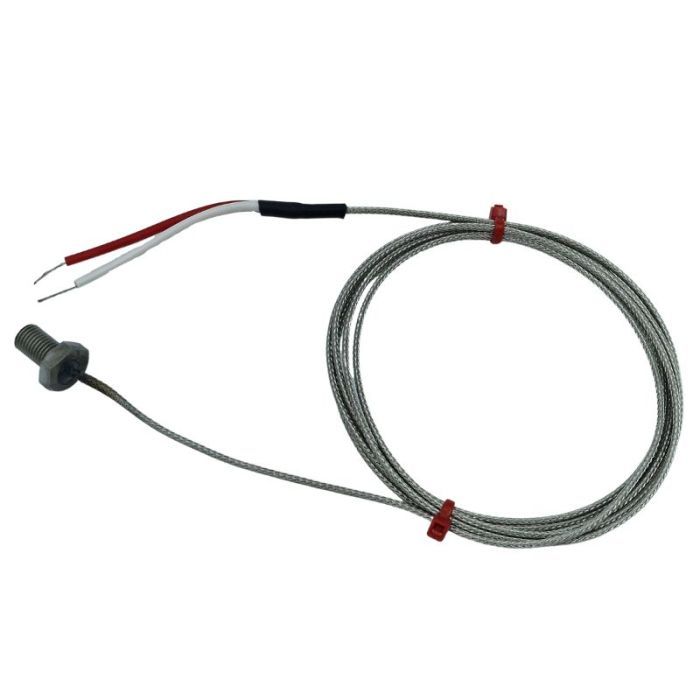

Bolt Thermocouple, Glassfibre Stainless Steel Over Braided Cable - JIS Type K- M12x1mm thread pitch - 13mm bolt size
Change Currency
SKU
XE-0594-001
£49.20
£41.00
- Buy 2 - 4 for £38.84 £32.37 each
- Buy 5+ for £33.01 £27.51 each
Bolt sensors are generally screwed into the surface which normally increases the speed of response and sensitivity of the measurement. Suitable for use up to +250°C.
Specifications
| Thermocouple Type | K JIS |
|---|---|
| Thermocouple Junction | Bolts have grounded junctions |
| Cable Length | 2m |
| Cable Type | Glassfibre stainless steel over braided cable |
| Cable Termination | Bare Tails |
| Max. Temperature | 250°C |
| Standards Met | JIS (Japanese Industrial Standards) |
| Bolt thread/pitch | M12 x 1mm |
| Colour | Positive: Red / Negative: White |
| Length | 13mm |
