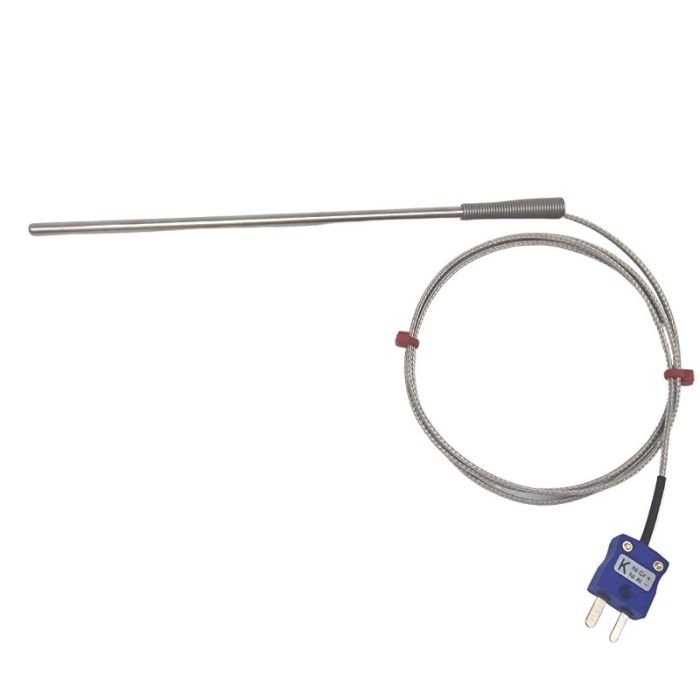

General Purpose Thermocouple Probe, Glassfibre insulated Cable with Stainless Steel Over-Braid - Type K JIS with Miniature Plug Termination - 1m Length
Change Currency
SKU
XE-0768-001
£27.77
£23.14
- Buy 2 - 4 for £25.00 £20.83 each
- Buy 5+ for £22.21 £18.51 each
Specifications
| General Description | Rugged thermocouple with stainless steel sheath |
|---|---|
| Thermocouple Type | K JIS |
| Thermocouple Junction | Grounded hot junction for fast response |
| Probe Diameter | 4.5mm |
| Probe Length | 150mm |
| Cable Length | 1M |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Core / Strands | 7/0.2mm |
| Termination Type | Miniature Plug (with cable clamps) |
| Max. Temperature | +350°C |
| Min. Temperature | -60°C |
| Standards Met | JIS (Japanese Industrial Standards) |
