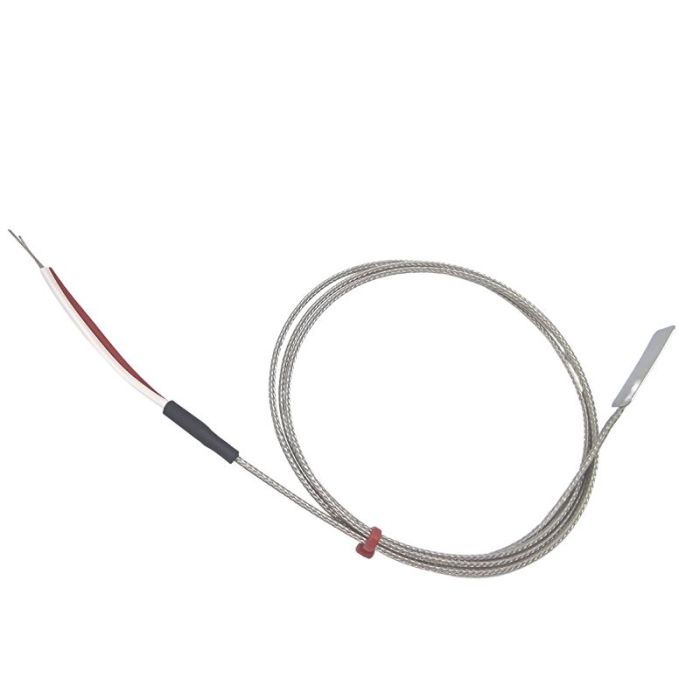

Leaf Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid - Type K JIS with Bare Tails Termination - 1m length
Change Currency
SKU
XE-0701-001
£17.77
£14.81
- Buy 2 - 4 for £16.00 £13.33 each
- Buy 5+ for £13.33 £11.11 each
Specifications
| General Description | Thermocouple mounted on a stainless steel shim |
|---|---|
| Thermocouple Type | K JIS |
| Thermocouple Junction | Junction grounded at tip for fast response |
| Cable Length | 1M |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Core / Strands | 7/0.2mm |
| Termination Type | Bare Tails |
| Max. Temperature | +350°C |
| Min. Temperature | -60°C |
| Standards Met | JIS (Japanese Industrial Standards) |
| Dimensions | 25x13mm shim (0.2mm thick) |
