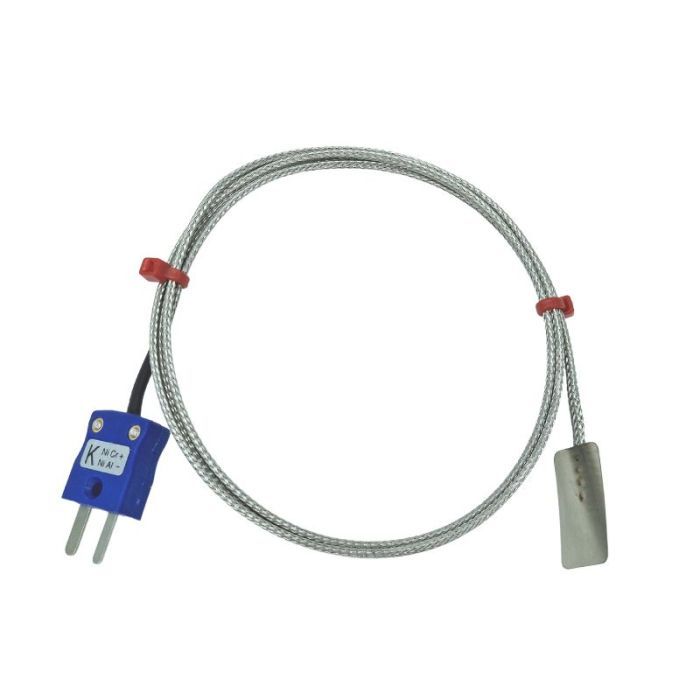

Leaf Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid - Type K JIS with Miniature Plug Termination - 5m length
Change Currency
SKU
XE-0697-001
£36.49
£30.41
- Buy 2 - 4 for £32.84 £27.37 each
- Buy 5+ for £27.37 £22.81 each
Specifications
| General Description | Thermocouple mounted on a stainless steel shim |
|---|---|
| Thermocouple Type | K JIS |
| Thermocouple Junction | Junction grounded at tip for fast response |
| Cable Length | 5M |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Core / Strands | 7/0.2mm |
| Termination Type | Miniature Plug (with cable clamps) |
| Max. Temperature | +350°C |
| Min. Temperature | -60°C |
| Standards Met | JIS (Japanese Industrial Standards) |
| Dimensions | 25x13mm shim (0.2mm thick) |
