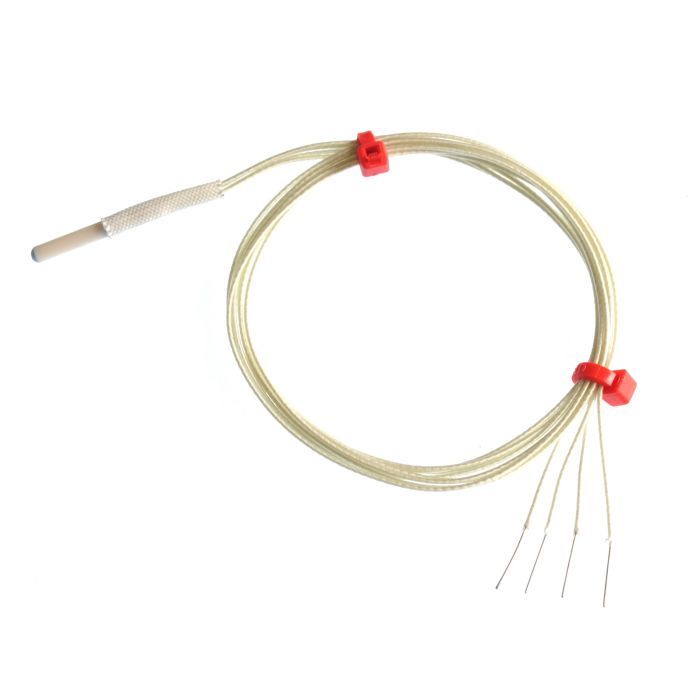

Platinum Resistance Detectors with extended leads, Wire-Wound Ceramic - 4 Wire - 1000mm Length
Change Currency
SKU
XE-5594-001
£48.44
£40.37
- Buy 2 - 4 for £40.49 £33.74 each
- Buy 5+ for £36.46 £30.38 each
Optimum performance, suitable for air & immersion applications (Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.)
Specifications
| General Description | Platinum Resistance Detectors with extended leads, Wire-Wound Ceramic |
|---|---|
| Sensor Type | Platinum Resistance, Pt100 Ohm |
| Sheath Material | Platinum coil wire-wound construction sealed inside a high purity alumina ceramic body |
| Cable Length | 1000mm |
| Cable Type | Glass-fibre insulated nickel |
| Cable Termination | Bare tails |
| Max. Temperature | 350°C |
| Min. Temperature | -50°C |
| Standards Met | European / British Standard Conforms to IEC 60751:2008 / BS EN 60751:2008 |
| Accuracy | Class B |
| Extended lead wire configuration | 4 Wire |
| Detector Dimensions | 2.8mm x 15mm |
| Fundamental interval | 38.5 ohms nominal (100 ohms) |
| Ice point resistance | 100 Ohms |
