Lascar EL-GFX-DTP- Dual Channel Thermistor Data Logger with Graphic Screen
Change Currency
SKU
XE-4034-001
£177.00
£147.50

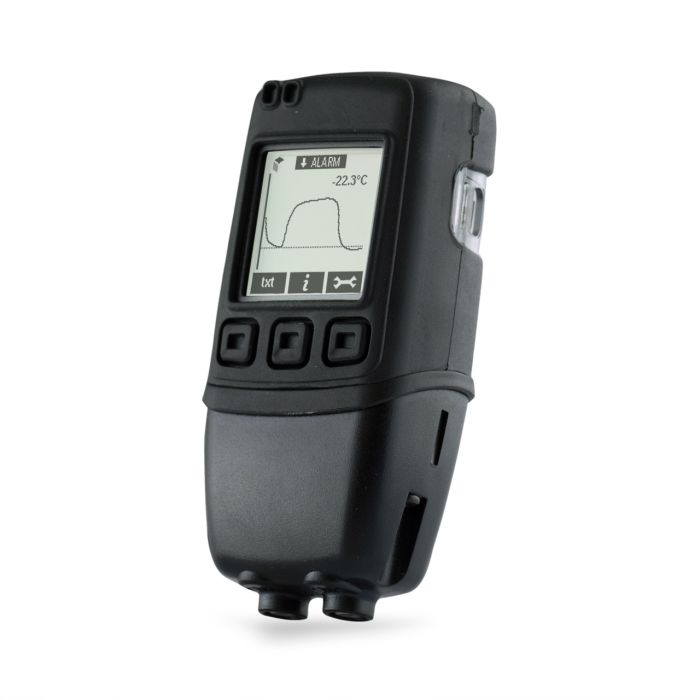

This USB data logger records over 250,000 temperature readings per channel in one or more sessions for up to 4 months. Inside the rugged case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data as a summary or as a graph. EL-WIN-USB enables quick configuration and data download via the USB port. Supplied with two thermistor probes and batteries, the EL-GFX-DTP is a popular part.
The EL-GFX-DTP is suitable for a wide variety of applications. These include:
- Pharmaceutical fridge monitoring
- Transportation
- Food & drink
- Building & site monitoring
- HVAC
**See Specifications tab for more details**
| General Description | This USB data logger records over 250,000 temperature readings per channel. Supplied with two thermistor probes and batteries, the EL-GFX-DTP is a popular part. |
|---|---|
| Type | Thermistor Data Logger with graphic screen |
| Accuracy | (overall error): ±0.1°C (±0.2°F) |
| Input / Ranges | -40 to 125°C (-40 to 257°F) |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| Resolution of data display | High contrast dot-matrix LCD |
| Dimensions | 88 x 48.5 x 30.5mm (3.46 x 1.90 x 1.20”) |
| Power Consumption | Battery Life: 4 months |
| Power Supply | BAT 3V6 1/2AA (included) |
| Maintenance | Logging rate: User selectable between 2 seconds and 1 hour |
