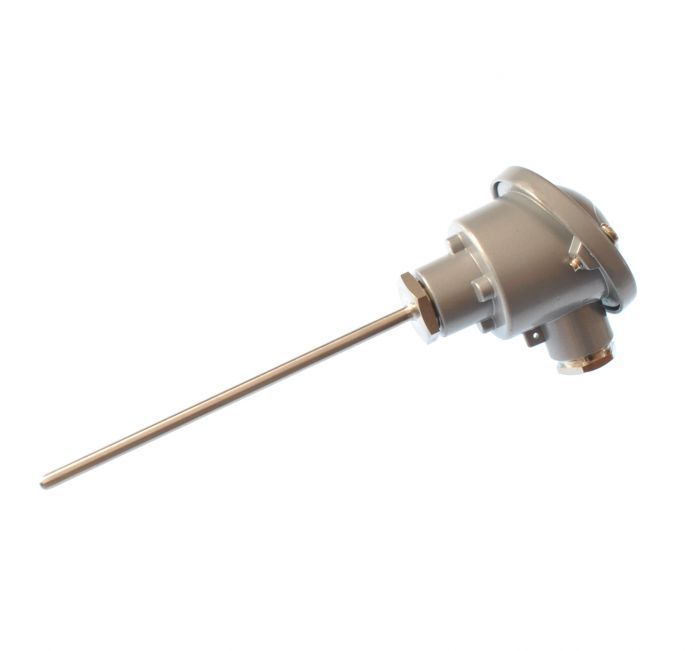

Pt100 4 wire class B Resistance Thermometer, DIN B Head with 500mm Probe Length
Change Currency
SKU
XE-5519-001
£95.99
£79.99
- Buy 2 - 4 for £81.98 £68.32 each
- Buy 5+ for £77.89 £64.91 each
Specifications
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire |
|---|---|
| Process Connection | Stainless steel plug (no thread) |
| Probe Diameter | 6.0mm |
| Probe Length | 500mm |
| Sheath Material | 316 Stainless Steel |
| Head Type | DIN B |
| Max. Temperature | +450°C (connection head @ 170°C) |
| Min. Temperature | -50°C |
| IP Rating | IP67 |
| Accuracy | Class B |
| Number of Wires | 4 |
