Fabricated & Specialist RTD / PRT Sensors

Suitable for general purpose industrial & commercial use.

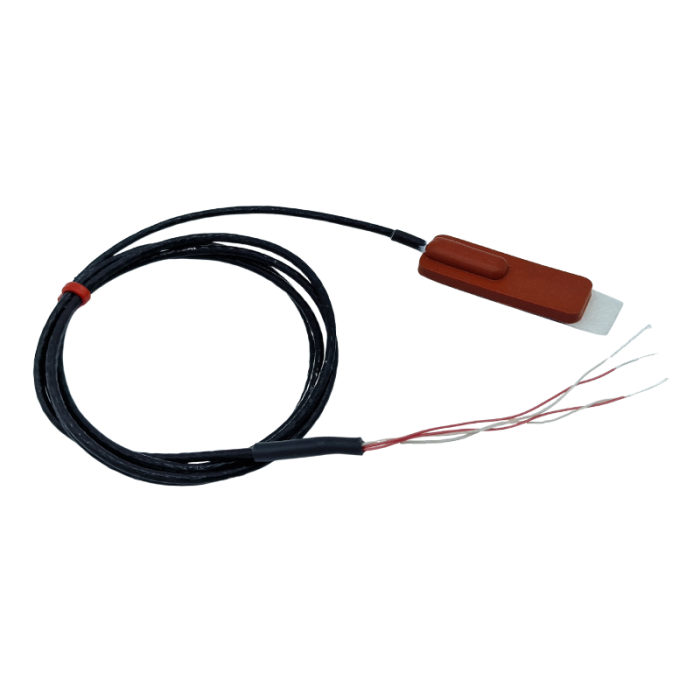

Silicone rubber patch with self adhesive foil backing.

Available variations

2M, 5M Lengths

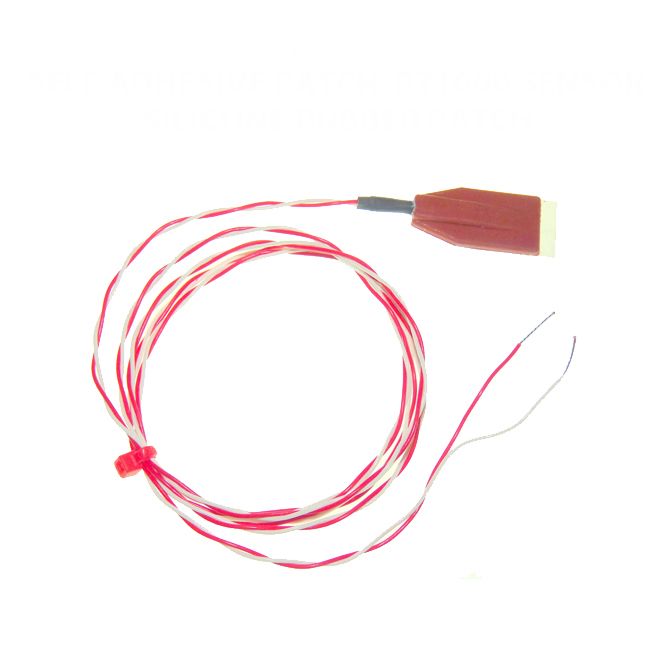

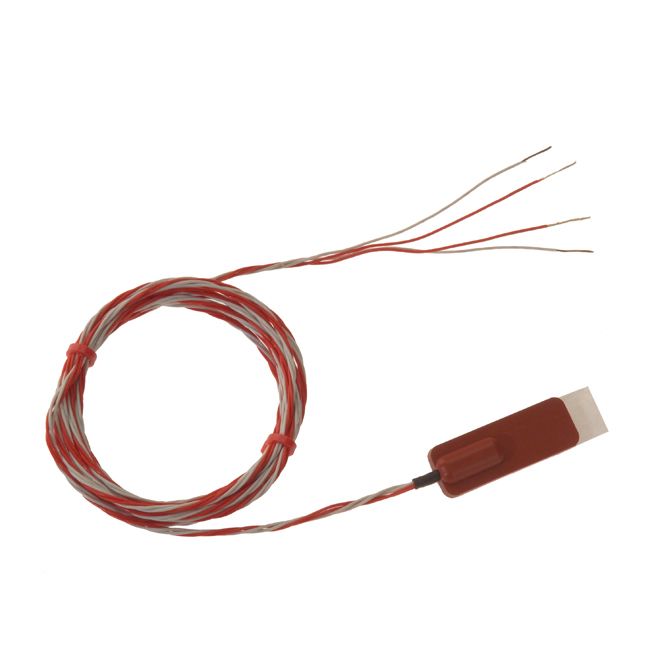

Pt1000 element encapsulated in a silicone rubber patch, Self-adhesive, aluminium foil backing.

Available variations

1M Length

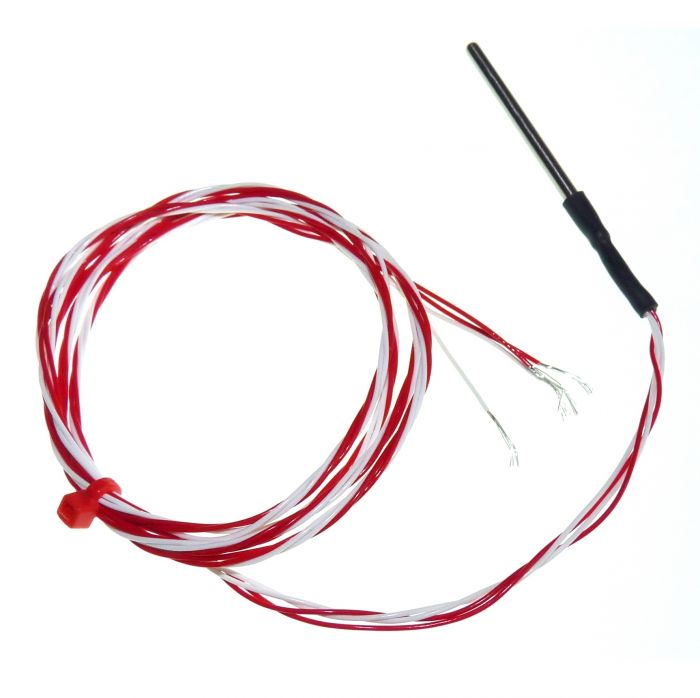

Pt100 element in a 3.0mm or 4.0mm diameter 316 stainless steel probe.

Available variations:

3.0mm, 4.0mm Diameter

25mm, 40mm, 50mm, 65mm, 90mm, 100mm, 125mm Length

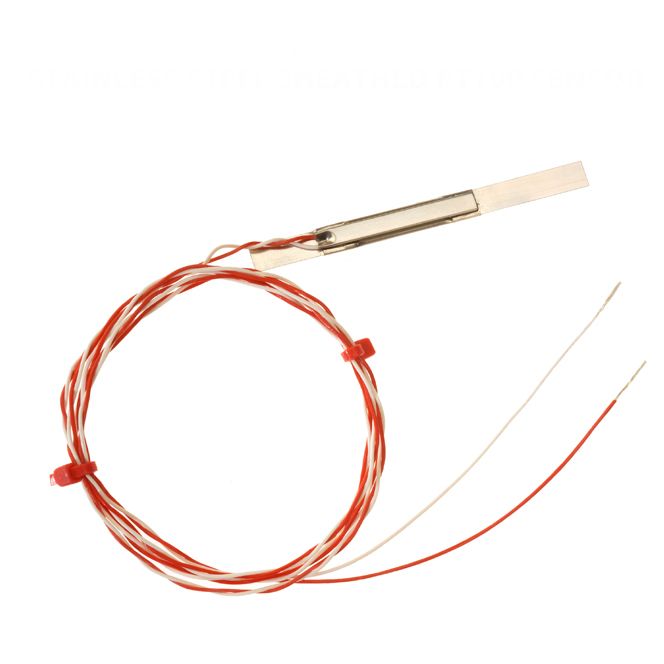

Sheathed Pt100 element in a thin, flat stainless steel body.
Quick thermal response while element remains protected.

Available variations

1M Length

Insulated element in a 4.0mm diameter 316 stainless steel probe.

Available variations

4.0mm Diameter

25mm, 40mm, 75mm, 125mm, 150mm Length

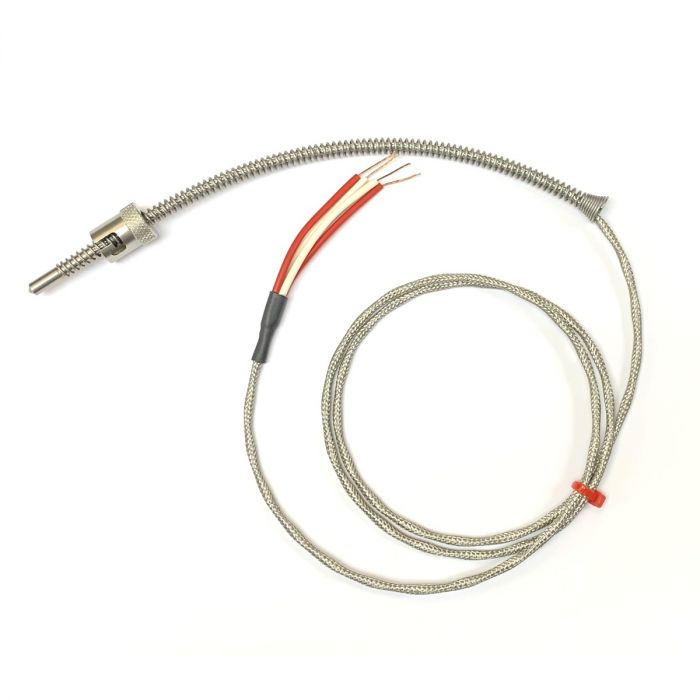

Adjustable Bayonet (Pt100) PRT / RTD with 200mm spring with adjustable fixing cap (11.5mm I.D. single slot).

Available variations

1M, 2M Length

The RTF4/NAH style is a surface sensor encapsulated within a silicone rubber patch.

Available variations

1M, 3M, 5M Lengths

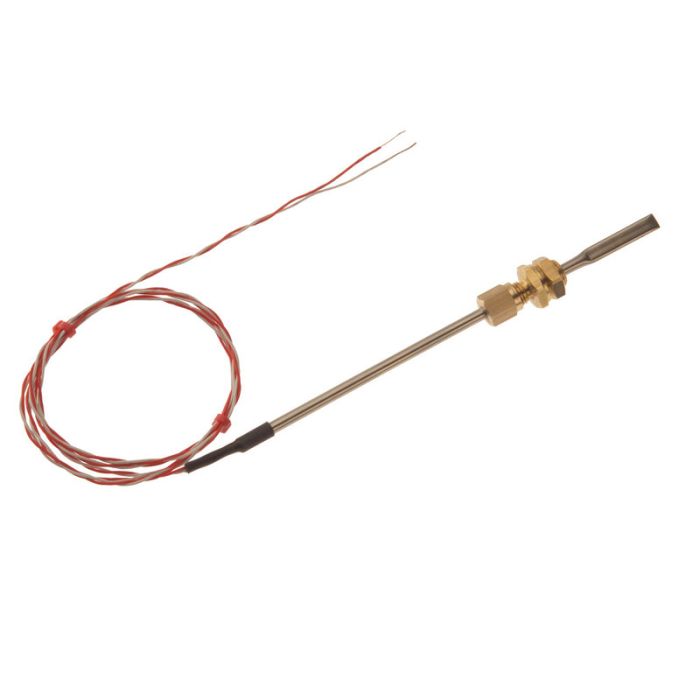

General purpose Pt100 probe, flattened at tip for improved thermal response.
2 wire configuration. Class B, to IEC 751.

Available variations

1M, 2M, 5M Lengths

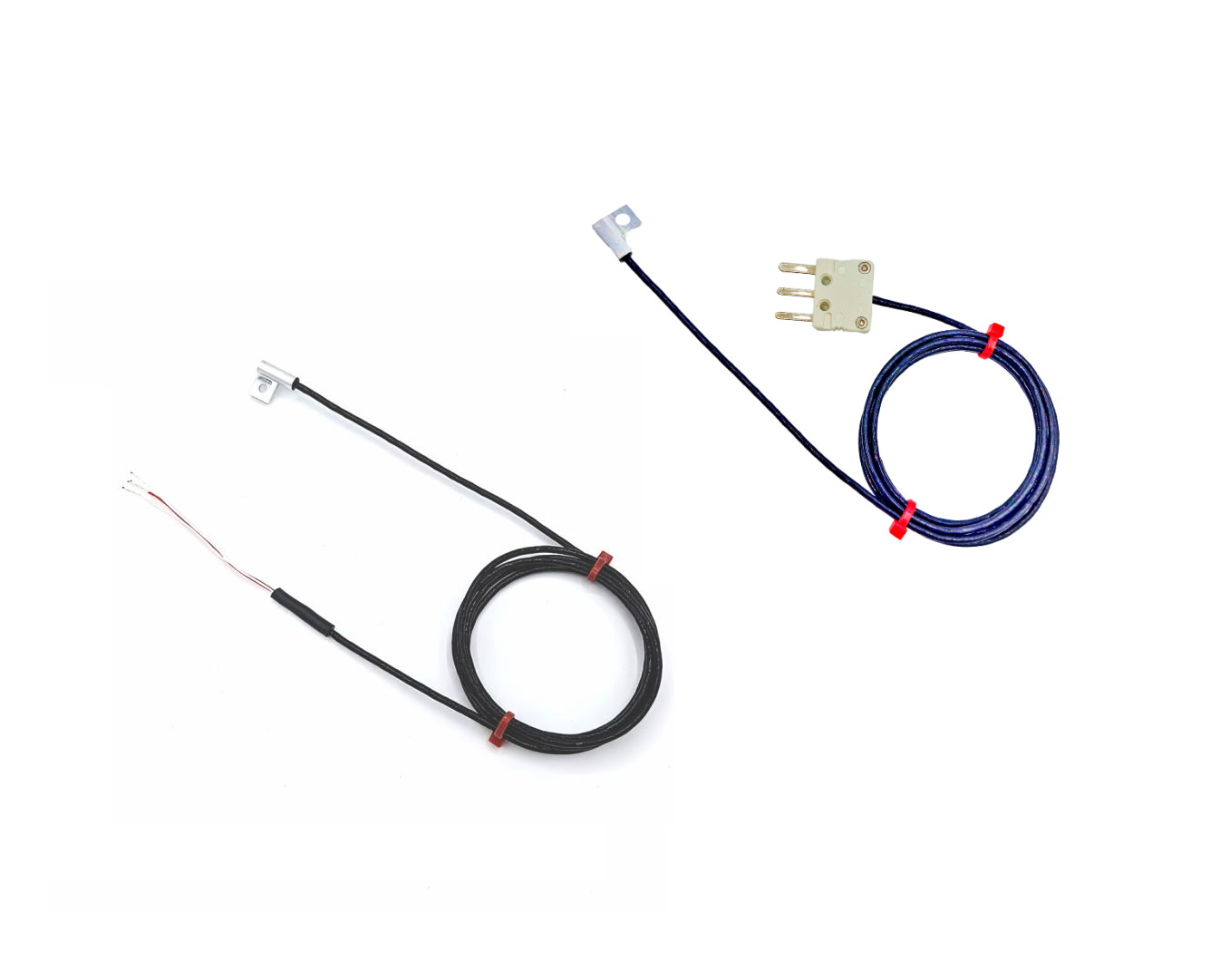

A bolt-on RTD Temperature Sensor with an aluminium housing for fast thermal response and tab with 3mm mounting hole for easy installation, complete with a PFA lead and tails.

Available variations

Miniature 3-PIN plug or no plug option

1M, 2M, 5M Length

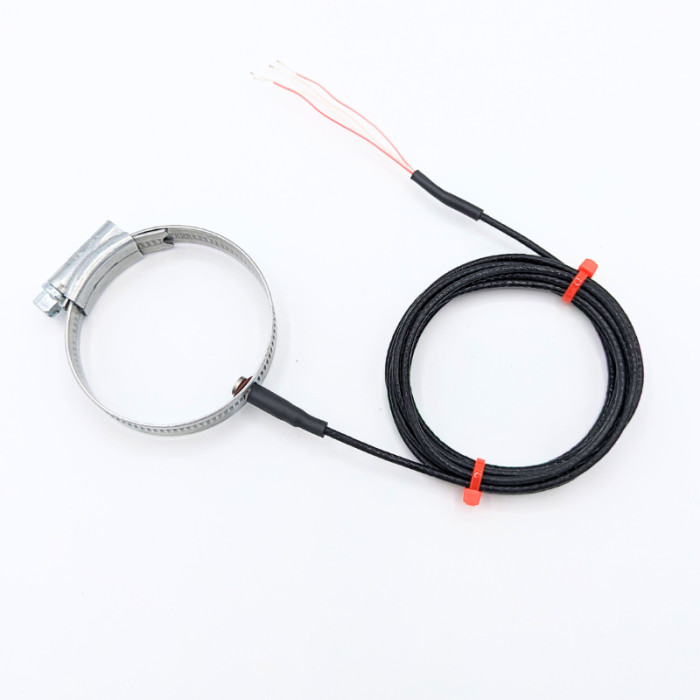

A surface temperature sensor with a measuring range of -50 to +250°C with a Pt100 class A 4 wire resistance thermometer detector (RTD).

Available variations

Four sizes with adjustable jubilee clip to fit pipe diameters of 13-20mm, 20-32mm, 30-45mm and 40-55mm.

Suitable for general purpose industrial & commercial use.

6mm probe diameter, Pt100.

Available variations

50mm, 100mm Length

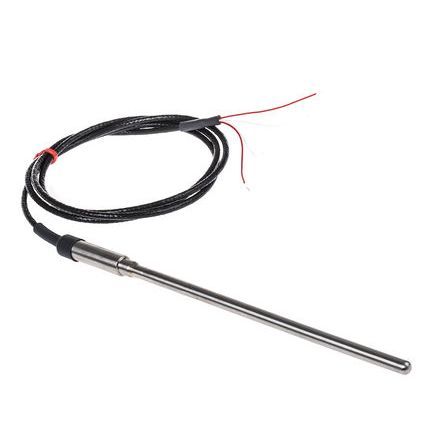

Pt100 Autoclave & steriliser drain temperature probe, for use to monitor the fluid temperature in the outlet drain of the steriliser.

Specifically designed in accordance with HTM2010 Clause 6.20 to provide the best possible accuracy and stability in the rigorous environment of the steriliser chamber.

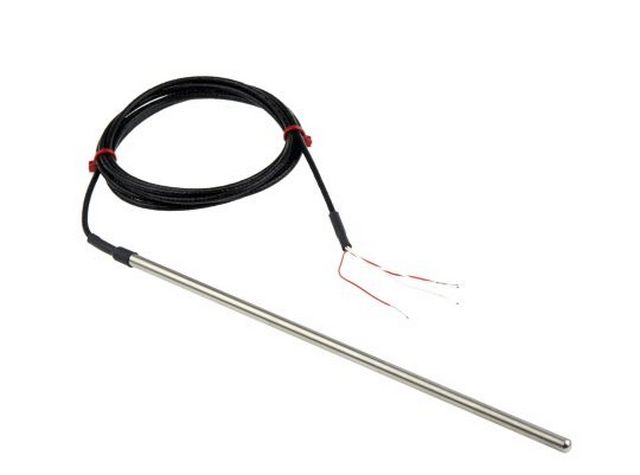

Precision Pt100 sensor offering high accuracy over the range -50 to 250°C or 0°C to 450°C. Ideal for use as a reference probe for comparison calibration of industrial sensors in temperature calibration baths, or for those looking for a high accuracy probe better than the usually offered class A or B types.

Available variations

250mm, 350mm Lengths

D Connector or Bare Tails Termination

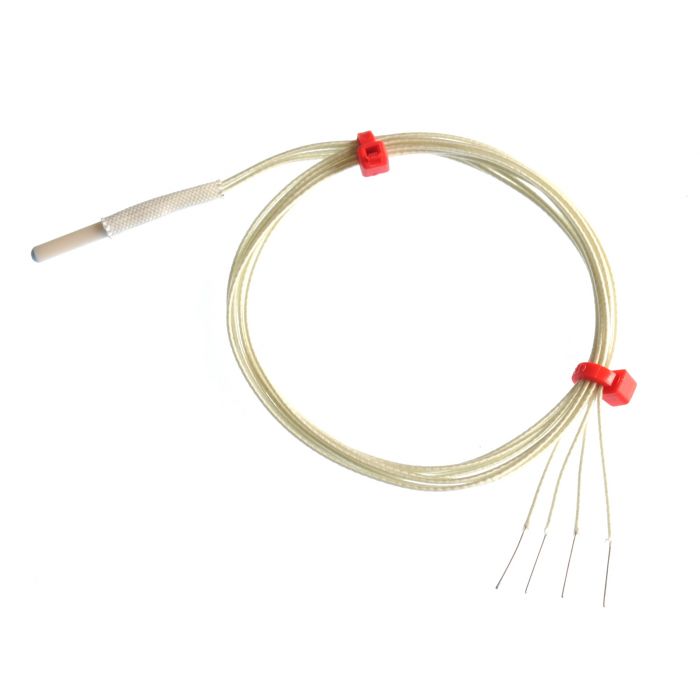

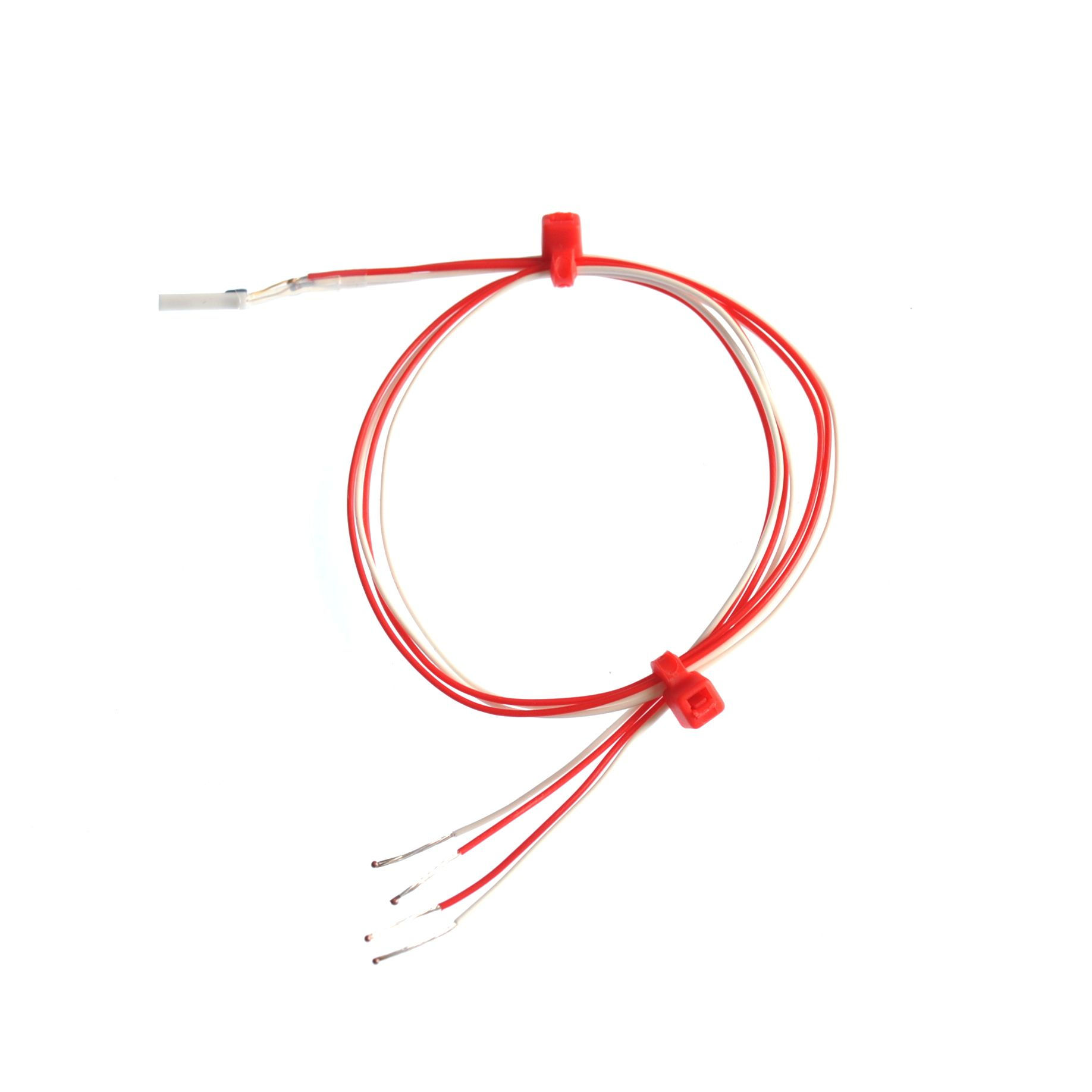

Optimum performance, suitable for air & immersion applications (Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.)

Available variations

2 or 4 Wire

300mm, 500mm, 1000mm Length
