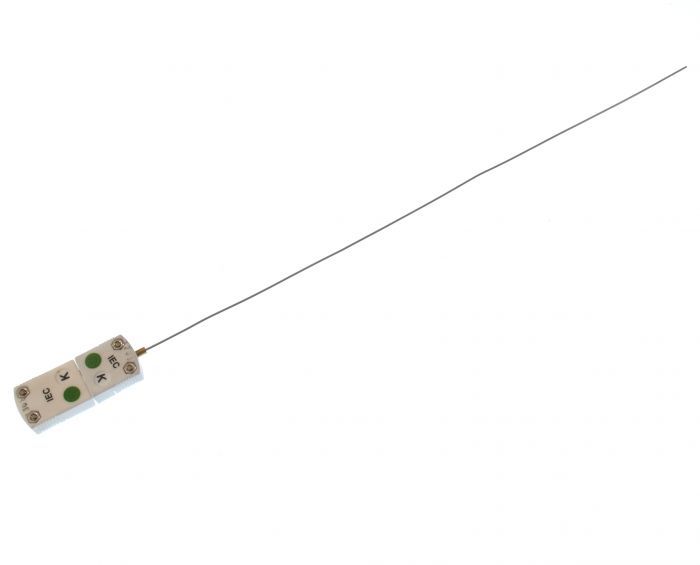

Thermocouple with miniature Ceramic Plug & Ceramic Socket (650°C) IEC, Type K - 1.5mm diameter, 150mm length
Change Currency
SKU
XE-2003-001
£60.76
£50.63
- Buy 2 - 4 for £50.82 £42.35 each
- Buy 5+ for £45.71 £38.09 each
Highly flexible, sheath can be bent/formed to suit many applications and processes. Supplied with a miniature ceramic plug and socket (socket supplied loose) (650°C).
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Probe Diameter | 1.5mm |
| Probe Length | 150mm |
| Sheath Material | Stainless steel 310 |
| Termination Type | Supplied with a miniature ceramic plug and socket (socket supplied loose) (650°C) |
| Max. Temperature | +750°C for 1.0mm diameter, +1100°C for 1.5 & 3.0mm diameters |
| Min. Temperature | -40°C |
| Standards Met | In accordance with IEC 584 |
| Connector Type | Ceramic plug and socket (socket supplied loose) (650°C) |
| Connector Size | Miniature |
| Colour | connectors are White with colour coded dot on body |
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
