Ceiling Temperature Sensor
Change Currency
SKU
XE-6331-001
£60.11
£50.09
If our current stock levels are insufficient to fulfil your order, lead time can be up to 4 weeks. You will be contacted after you order by our sales team. Contact us for information on current stock.

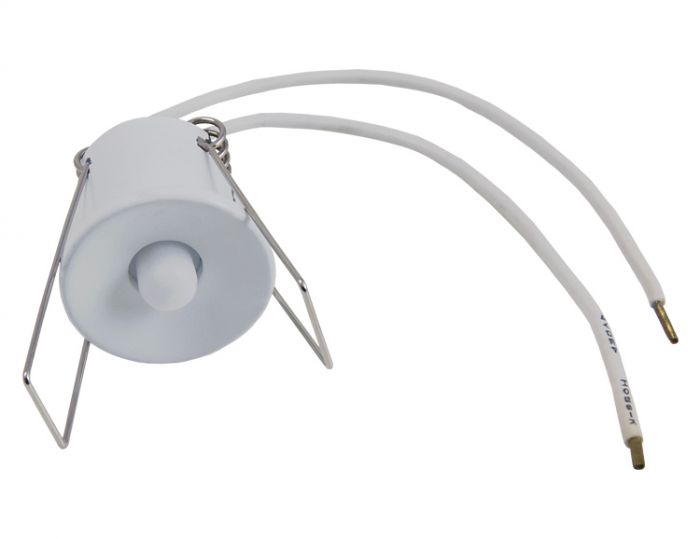

A ceiling sensor in modern, invisible housing design measures the temperature in the range of -30 up to +60°C in gasiform medium. The temperature sensor can be directly mounted by using 2 springs in a suspended ceiling or plasterboard wall.
Specifications
| Measurement temperature range | -30 to +60°C |
| Sensor | Pt100 |
| Circuit type | 2-wire connection |
| Measurement current | approx. 1 mA |
| Electrical connection | stripped ends with ferrules |
| Cable | 135 mm silicone cable (2x0,75 mm², max. +180°C) |
| Leakage resistance | > 100 MOhm, at +20°C (500 V DC) |
| Housing | aluminium, colour signal white like RAL 9003 |
| Dimensions | (Housing) Ø 23 mm, (Cover) Ø 30 mm |
| Protection type | IP30 |
| Protection class | III |
| Storage temperature | -20 to +50°C |
| Installation | in the false ceiling by 2 tension springs |
| Standards | CE-conformity, GOST, RoHS |
