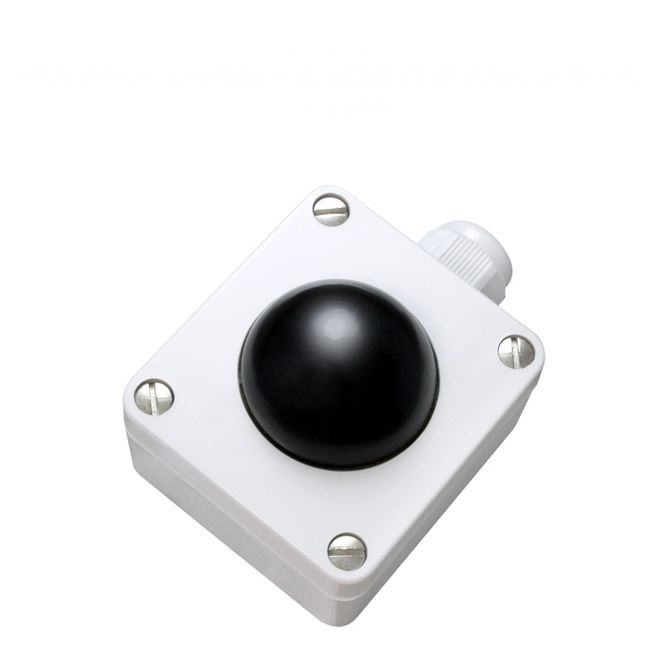

Outdoor Radiation Temperature Sensor
Change Currency
SKU
XE-6334-001
£99.62
£83.02
If our current stock levels are insufficient to fulfil your order, lead time can be up to 4 weeks. You will be contacted after you order by our sales team. Contact us for information on current stock.
A radiation sensor measures the thermal radiation in the range of -30 up to +75°C and is with all current sensors available. The temperature probe can be mounted in climate-sensitive areas e.g. on outside walls, whereby the humidity-proof plastic housing protects the sensor optimally from outside influences.
Specifications
| Measurement temperature range | -30 to +75°C |
| Sensor | Pt100 |
| Circuit type | 2-wire connection |
| Measurement current | approx. 1 mA |
| Electrical connection | screw terminals max. 1,5 mm² |
| Leakage resistance | > 100 MOhm, at +20°C (500 V DC) |
| Housing | polyamide with snap closing screws, colour white like RAL 9010 |
| Cable gland | PG11 high-strength cable gland with strain relief |
| Material | (Globe) aluminium (black) |
| Dimensions | (Globe) Ø 40 mm |
| Protection type | IP65 |
| Storage temperature | -20 to +70°C |
| Installation | screw fastening |
| Standards | CE-conformity, GOST, RoHS |
