Thermocouple Cable / Wire Type U PVC Insulated Flat Pair (BS)
Change Currency
SKU
WU-001-D
£0.41
£0.34
Thermocouple Cable / Wire Type U PVC Insulated Flat Pair (BS)

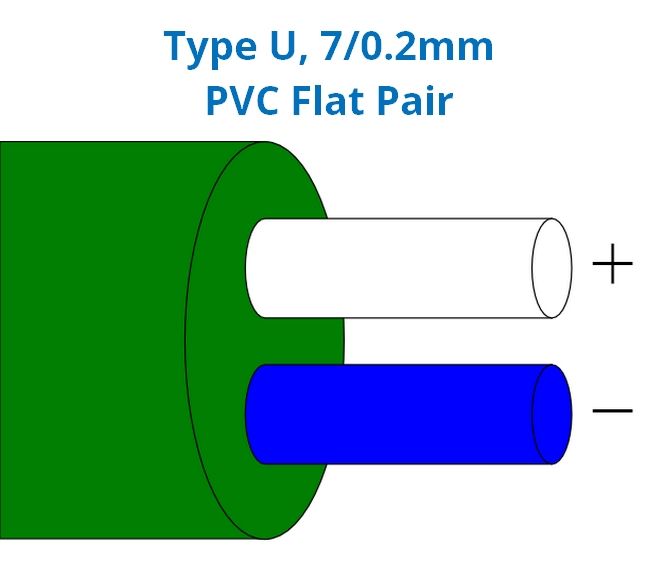

Image is for colour coding illustration only
Price is per metre - please add required quantity for basket. Only 1,155 metres left in stock
Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.
Specifications
| General Description | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Cable Length | Priced per metre |
| Cable Type | Flat pair construction |
| Core / Strands | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Green |
| + Colour | White |
| - Colour | Blue |
| Insulation Material | PVC Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperature | +105°C |
| Min. Temperature | -10°C |
| Standards Met | BS |
| Thermocouple Type | U |
| Tolerance | Class 2 |
