Type N Glassfibre Insulated Flat Pair thermocouple Cable / Wire (IEC)
Change Currency
SKU
XE-2524
£12.98
£10.82

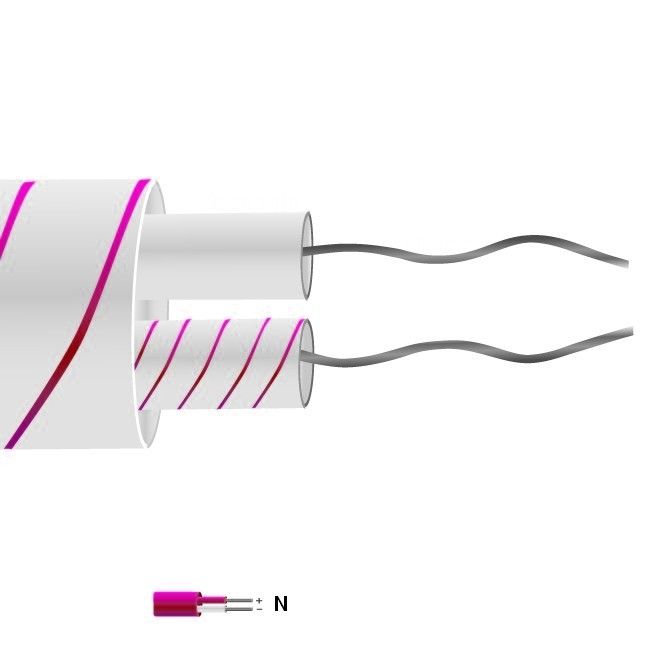

Type N Glassfibre Insulated Flat Pair thermocouple Cable / Wire (IEC)
Glassfibre insulated flat pair construction, conductors laid flat, Glassfibre insulated with Glassfibre overall, silicone varnished throughout. Good temperature resistance but not suitable where fluids are present.
| General Description | Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m |
| Cable Type | Flat pair cable |
| Core / Strands | 1/0.315mm |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Outer Colour | Pink & White |
| + Colour | Pink |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | Glassfibre insulated |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 17.7 |
| Max. Temperature | +350°C (short periods up to 400°C) |
| Min. Temperature | -60°C |
| + Conductor | Copper |
| - Conductor | Nisil |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Thermocouple Type | N |
| Tolerance | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
