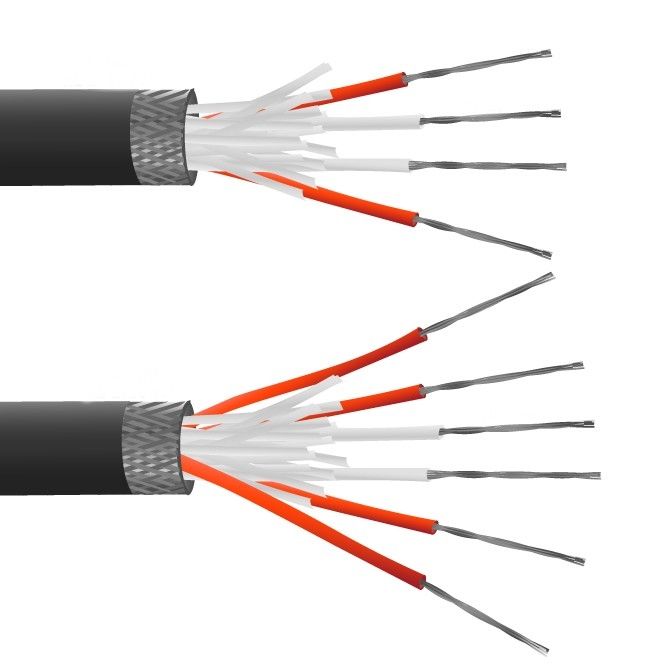

3 Core PFA Insulated, Tin Plated Copper Screen, PRT Sensor Cable / Wire
High temperature to 260°C, extruded PFA Teflon® construction. Commonly used for Pt100Ω thermometers, also suitable with other types such as Pt130, Pt500 & Pt1000Ω
Specifications
| General Description | PFA insulated 7/0.2mm tin plated copper conductors, twisted cores with nylon cord, tin plated copper braided screen with PFA insulated outer jacket |
|---|---|
| Cable Length | 10, 25, 50, 100m |
| Cable Type | PFA Teflon® construction |
| Core / Strands | 7/0.2mm |
| Insulation Material | PFA Insulated |
| Max. Temperature | +260°C |
| Min. Temperature | -75°C |
| Number of Wires | 3 |
| Standards Met | Cores colour coded Red & White in accordance with IEC-751, black outer jacket |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
