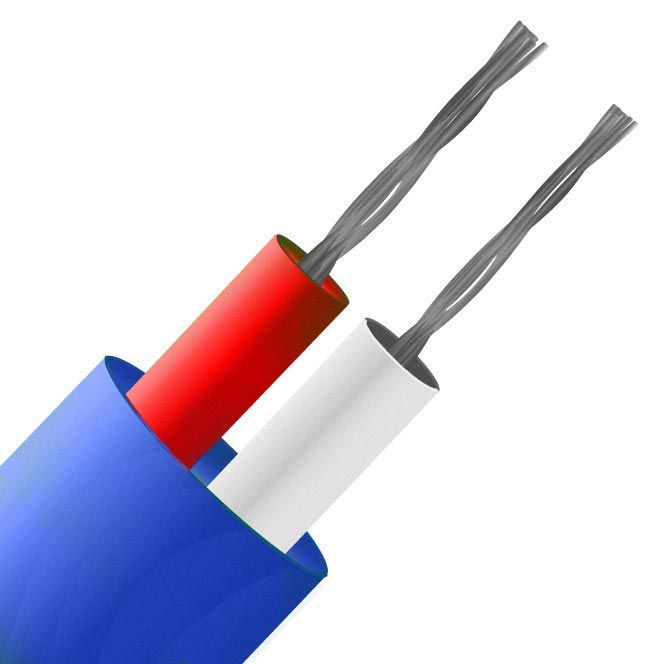

Type K PFA Insulated Flat Pair Thermocouple Cable / Wire (JIS)
Change Currency
SKU
XE-0540
£18.41
£15.34
PFA Teflon® insulated flat pair. PFA Teflon® has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam & pressure.
Specifications
| General Description | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m |
| Cable Type | Single pair of PFA insulated conductors, laid flat with PFA jacket |
| Core / Strands | 1/0.2mm, 1/0.315mm, 1/0.508mm |
| Outer Colour | Blue |
| + Colour | Red |
| - Colour | White |
| Insulation Material | PFA Insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 31.8 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
| Max. Temperature | +260°C |
| Min. Temperature | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standards Met | JIS (Japanese Industrial Standards) |
| Thermocouple Type | K |
