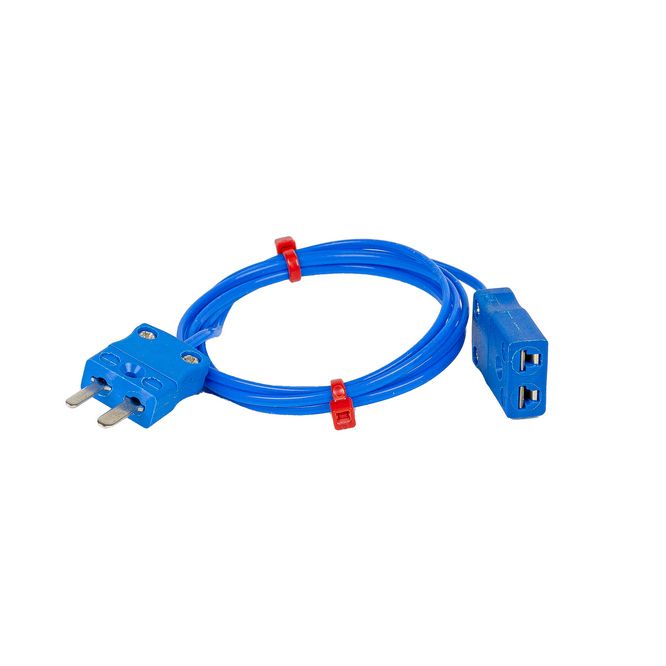

Type K PVC Extension Leads with Miniature Plug & Socket (JIS)
Change Currency
SKU
XE-0548
£11.53
£9.61
Specifcations
| General Description | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Cable Length | 1M, 2M, 3M, 5M, 10M |
| Cable Type | Flat Pair Construction |
| Connector Type | Thermocouple Plug & Socket |
| Connector Size | Miniature |
| Core / Strands | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Blue |
| + Colour | Red |
| - Colour | White |
| Drain Wire | No |
| Insulation Material | PVC Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperature | +105°C |
| Min. Temperature | -10°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standards Met | JIS (Japanese Industrial Standards) |
| Thermocouple Type | K |
| Termination Type | Miniature Thermocouple Plug and Socket |
