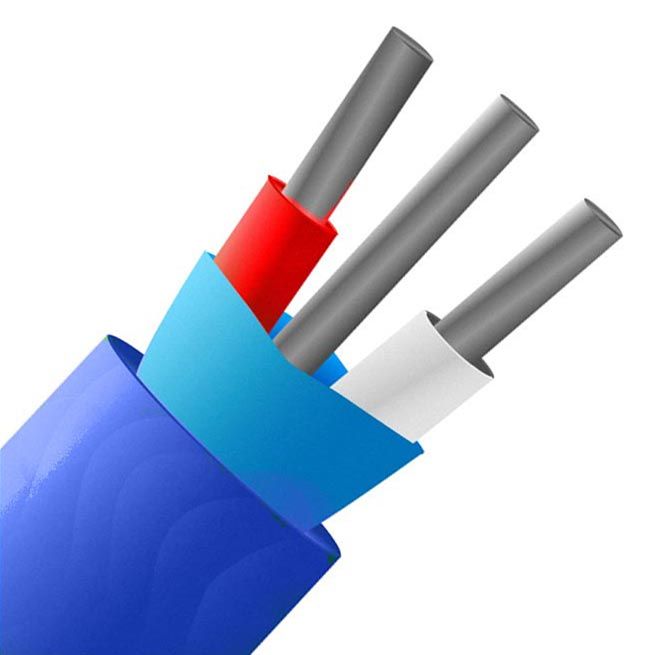

Type K PVC Mylar Screened Thermocouple Cable / Wire (JIS)
Change Currency
SKU
XE-0547
£22.96
£19.13
Specifications
| General Description | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Cable Length | 10m, 25m, 50m, 100m, 200m |
| Cable Type | Twisted cores & screened construction for reduced electrical noise |
| Core / Strands | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Blue |
| + Colour | Red |
| - Colour | White |
| Drain Wire | Yes |
| Insulation Material | PVC Insulated with a mylar screen |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperature | +105°C |
| Min. Temperature | -10°C |
| Screen | Yes |
| Screen Type | Mylar |
| Standards Met | JIS (Japanese Industrial Standards) |
| Thermocouple Type | K |
