Thermocouple Cable / Wire Type K PVC Insulated Flat Pair (BS)
Change Currency
SKU
WK-010-D
£1.31
£1.09
Thermocouple Cable / Wire Type K PVC Insulated Flat Pair (BS)

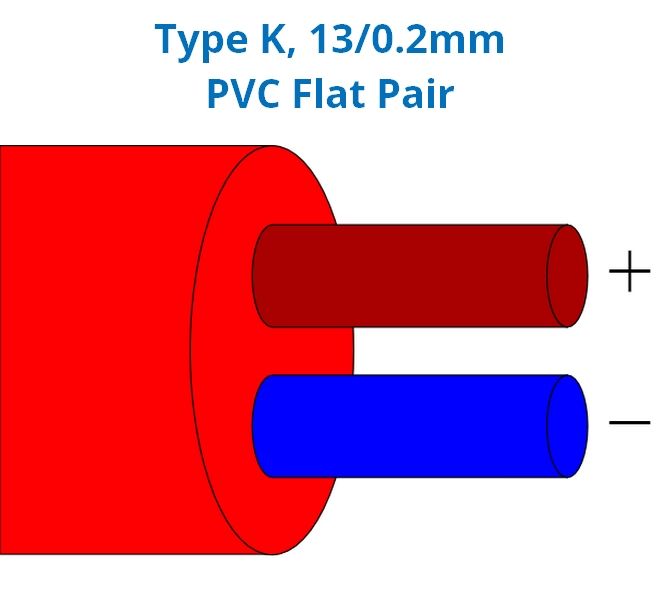

Image is for colour coding illustration only
Price is per metre - please add required quantity for basket. Only 613 metres left in stock
Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.
Specifications
| General Description | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Cable Length | Priced per metre |
| Cable Type | Flat pair construction |
| Core / Strands | 13/0.2mm |
| Outer Colour | Red |
| + Colour | Brown |
| - Colour | Blue |
| Insulation Material | PVC Insulated |
| Max. Temperature | +105°C |
| Min. Temperature | -10°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Standards Met | BS |
| Thermocouple Type | K |
| Tolerance | Class 2 |
